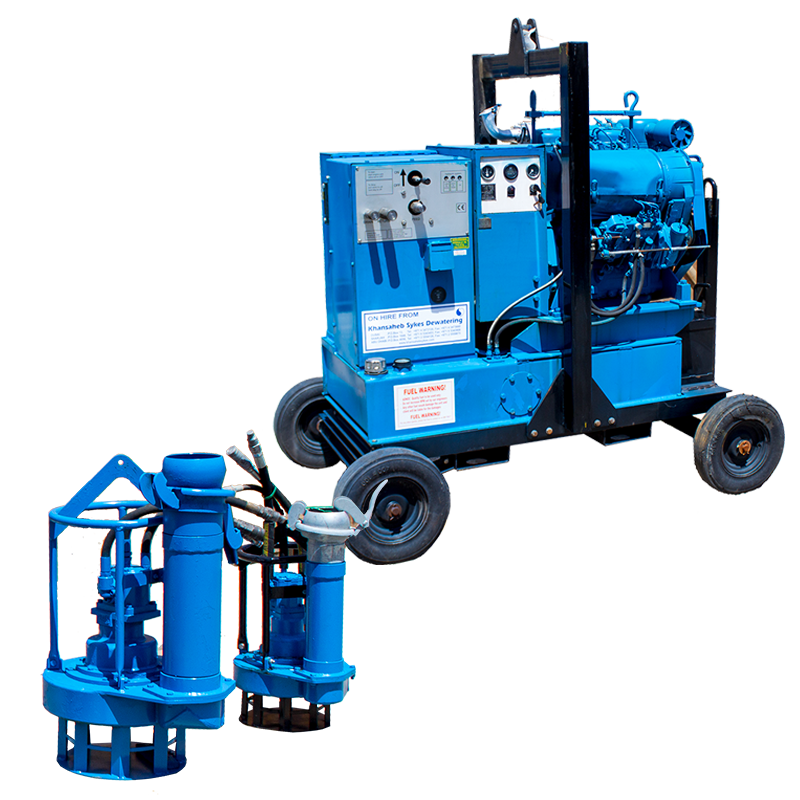

H100 & H150 Hydraulic Submersible Pump

Comprising of three vital components, the Hydrapak, Hydrapump and Hydrahose, these units offered by Khansaheb Sykes are a perfect substitute to the diesel driven pumps offered by us or in locations where there is limited or no electric power available. The noise levels of this unit are very low thus making it efficient to use in noise sensitive areas.

Key Features

Feature

Highly efficient solids handling

Easy tow

Silenced diesel engine

Fully electric start

Fully portable

Cost effective pumping

Hard wearing

No suction lift restrictions

Product Specification

Weight :H100 – Pump end: 51 kg,
H150 – Pump end: 105 kg,
Powerpack: 995 kg
Dimension :H100 – Pump end: 465 x 350 x 745 mm,
H150 – Pump end: 650 x 500 x 970,
Powerpack: 1900 x 1100 x 1720 (L x W x H)
Noise level :@ 7m = 75 dBA
Performance :H100
Max head: 40.0 m,
Max flow: 62 l/s,
Max solid: 38 mm,H150
Max head: 22.0 m,
Max flow: 95 l/s,
Max solid: 65 mm
Fuel Tank Capacity :145 litres
Fuel Consumption :9 litres/hour
Pipe Connections :H100: 4″ Bauer
H150: 6″” Bauer
Engine (Type / Power / Speed) :HA394 28 kW

Downloads

Accessories

3 LINE SET x 20M
DRIP TRAY 2440MM X 1525MM
DRIP TRAY 2058MM X 1525MM
RETAIL GAS OIL
BUNDED FUEL TANK 2000 LITRE
BUNDED FUEL TANK 2800 LITRE
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE

Sectors

Clean and dirty water
Slurry
Sewage
Waste water
Sludge
Ground water control
