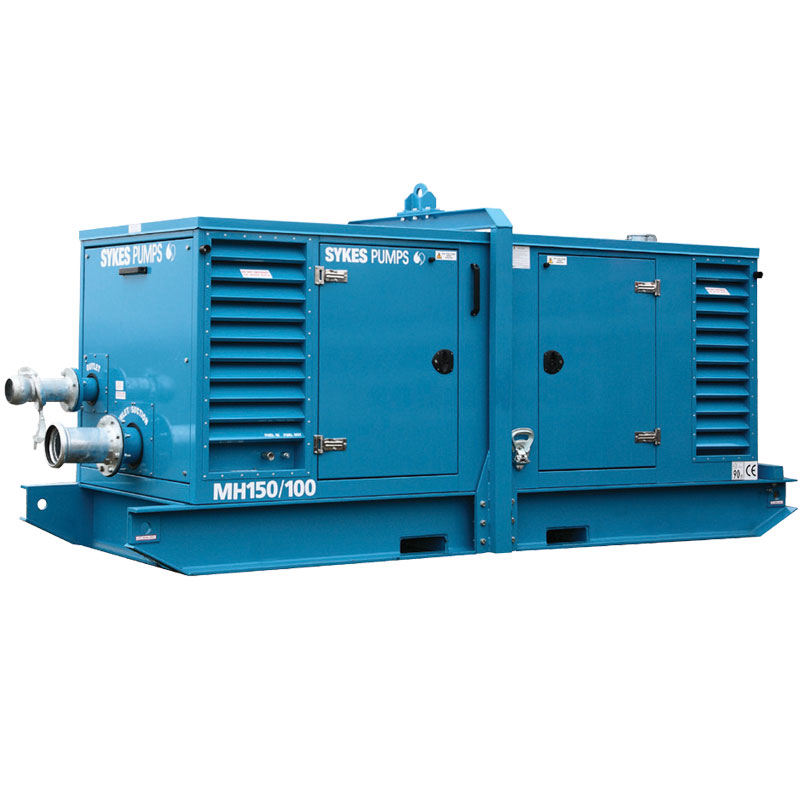

MH150/100 SUPER WISPASET Medium Head

The MH150/100 SUPER WISPASET is designed for all general purpose medium head applications and is ideally suited for Open Cast Mining and Quarrying applications. The carefully designed high efficiency impeller gives excellent Head and Flow characteristics.

Key Features

Feature

Hard wearing cast

Iron parts

Hours of unattended operation

Corrosion resistant

Automatic priming and re-priming

Fuel efficient engine

Compact and manoeuvrable

Available as skid mounted

Electric start

Ease of maintenance

Solids handling up

to 20 millimetres

Available as super silenced

Product Specification

Performance : Max head: 105 m
Max flow: 90 l/s
Max solid: 20 mm
Weight : 2905 kg
Dimensions (L x W x H) : 4090 x 1370 x 1685 mm
Noise Level : @7m = 70 dBA
Pipe connections : Suction: 6″ Table D
Discharge: 4″ NP16
Bauer couplings option
Fuel Consumption : Full load @ 1800 rpm: 26.5 litres/hour
Energy Efficient duty point : Fuel Consumption @ 1800 rpm: 21.9 litres/hour
Sperate fuel tank required

Downloads

Accessories

4″ X 3M W/A BAUER HOSE
4″ 20FT W/A SUCTION HOSE BAUER
4″ 20FT POLYTUBE
4″ X 6MTR STEEL BAUER PIPE
4″ 45* FLANGED NP16
4″ 90*PLANGED NP16 BEND
4″ GATEVALVE
4″ NON RETURN VALVE
6″ 10FT W/A SUCTION HOSE BAUER
6″ W/A SUCTION HOSE X 6MTS
RETAIL GAS OIL
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE
